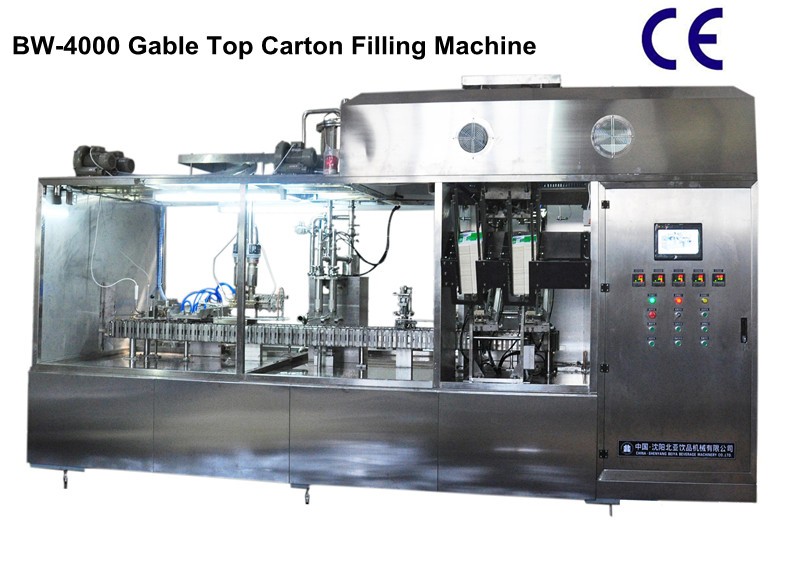

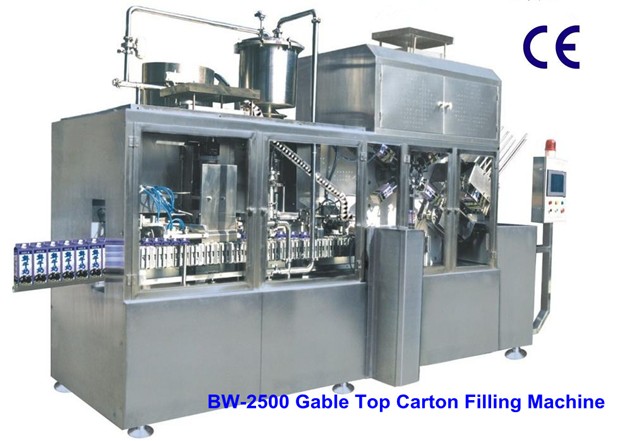

Fully Automatic Gable Top Filling Machine

Scope of Application

Suitable for filling liquid dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.

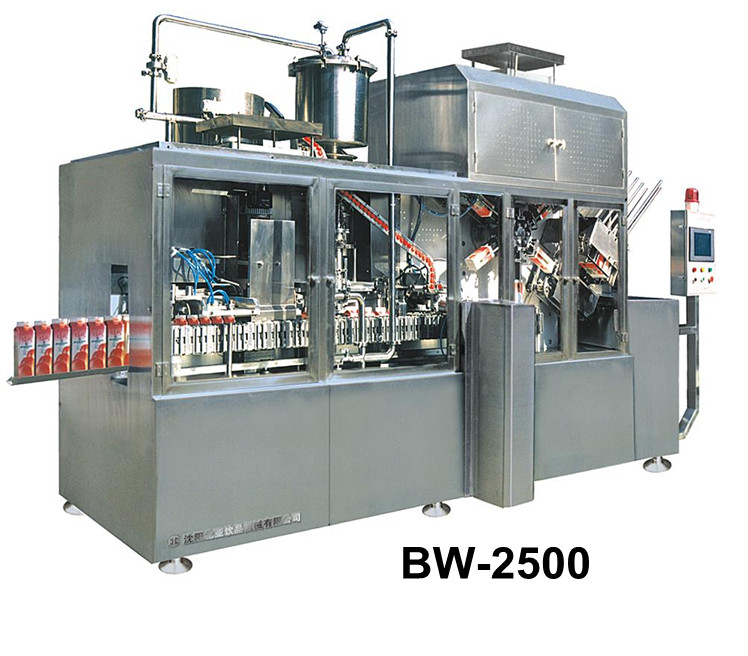

Product Display

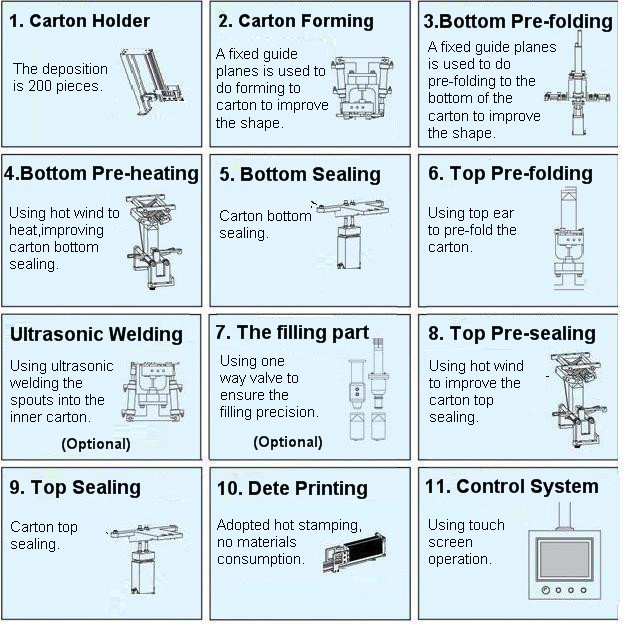

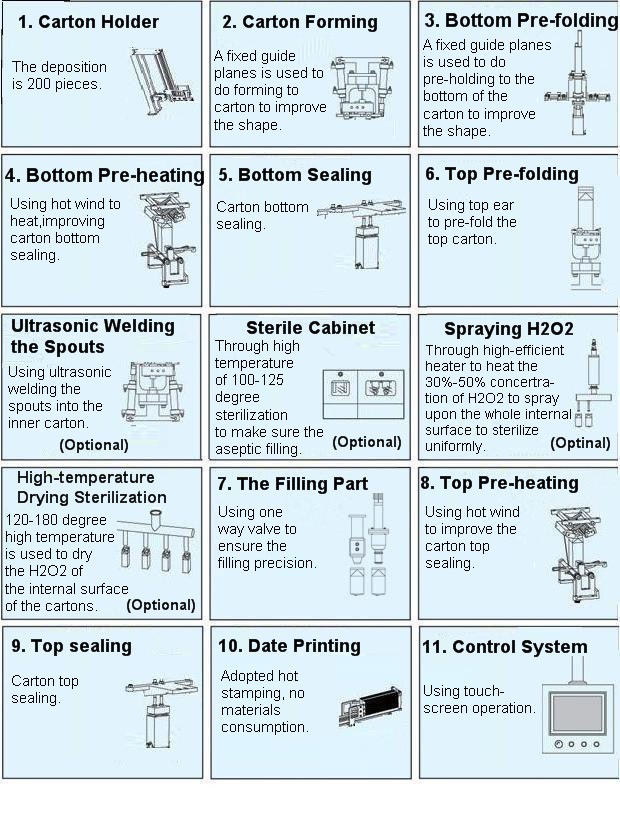

Production Process Drawings

Put cardboard into carton holder (manually) → Bottom pre-forming → Bottom heating and sealing → Ultrasonic capping (Optional) → Top pre-forming→ Filling → Top heating and sealing → Date printing → Finished product



Equipment Type and Packaging Material Specification

Type
BW-8000
BW-6000

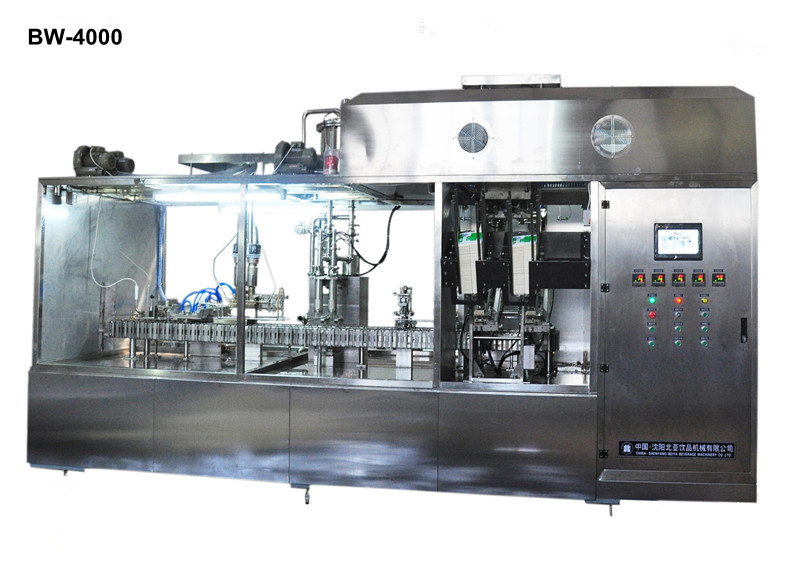

BW-4000
BW-2500

Specification

Slim: 200ml, 250ml, 380ml, 500ml

Base: 500ml, 750ml, 1000ml

Base: 1000ml, 1500ml

Base: 1500ml, 2000ml

﹡Different bottom size can not be used in one machine.

Capacity

8000pcs/h
6000pcs/h
4000pcs/h
2500pcs/h
Weight
6000KGS
5500KGS
5000KGS
3200KGS
Power
75KW
60KW
35KW
18KW

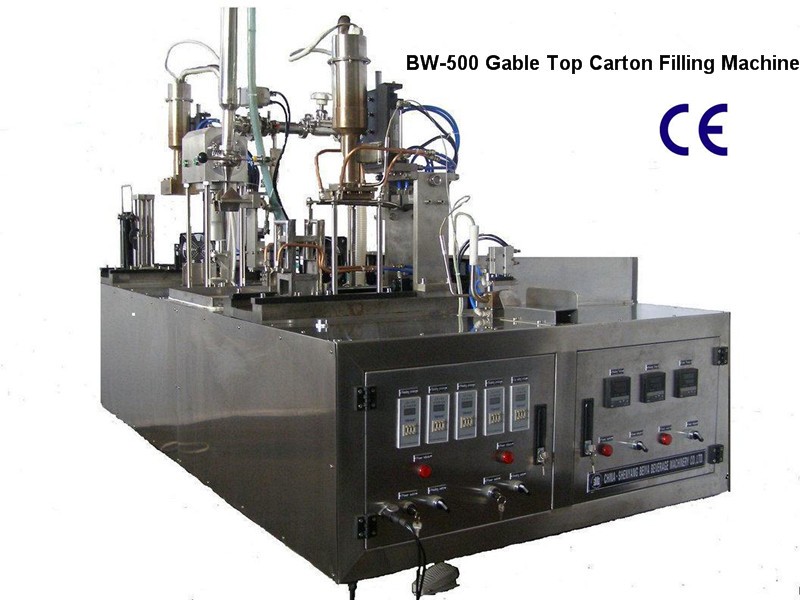

Semi-automatic Filling MachineMachine

Scope of Application


Suitable for filling liquid dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.

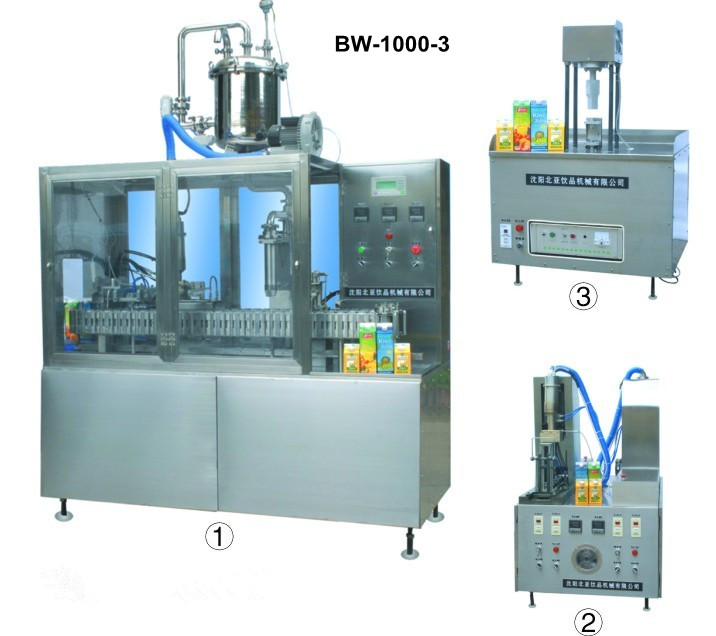

Product Display






Production Process Drawings

Put cardboard into carton holder (manually) → Bottom pre-forming → Bottom heating and sealing → Ultrasonic capping (Optional) → Top pre-forming→ Filling → Top heating and sealing → Date printing → Finished product


Equipment Type and Packaging Material Specification


Type

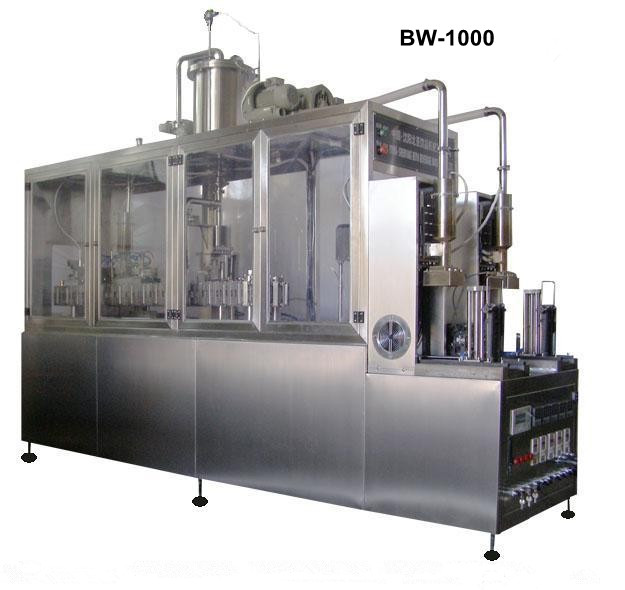

BW-1000

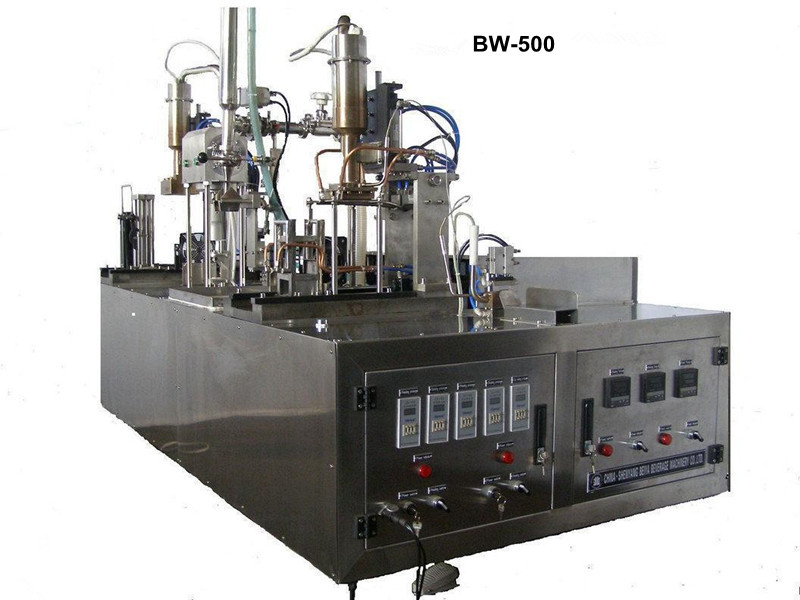

BW-500
Specification

Slim: 200ml, 380ml, 500ml

Base: 500ml, 750ml, 1000ml

Base: 1000ml, 1500ml

Base: 1500ml, 2000ml

﹡Different bottom size can not be used in one machine.


Base: 500ml, 750ml, 1000ml

Base: 1000ml, 1500ml

Base: 1500ml, 2000ml

﹡Different bottom size can not be used in one machine.

Capacity
1000pcs/h
500pcs/h
Weight
1500KGS
1000KGS
Power
24KW
16KW

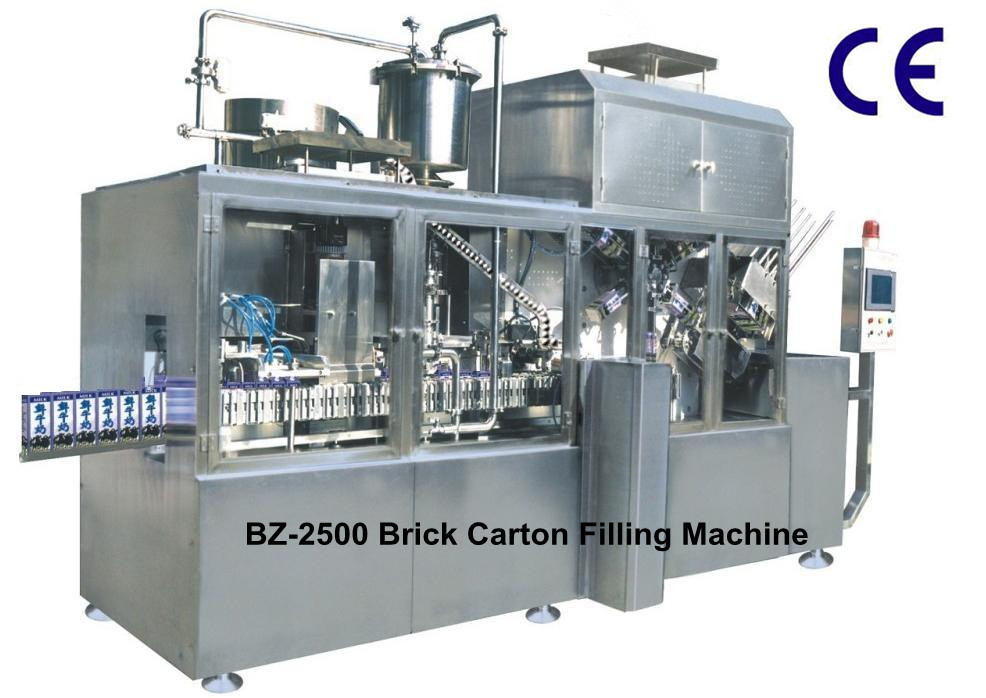

Brick Carton Filling Machine

Scope of Application



Suitable for filling liquid dairy product, juice, milk, milk beverage, cream, yogurt, mineral water, soy milk, tea beverage, seasoning, wine, cleaning solution, chemical product, granular, dry powder and so on.

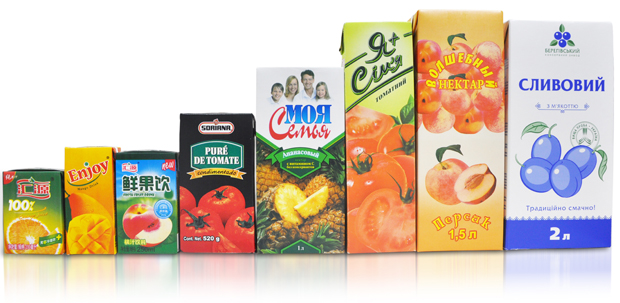

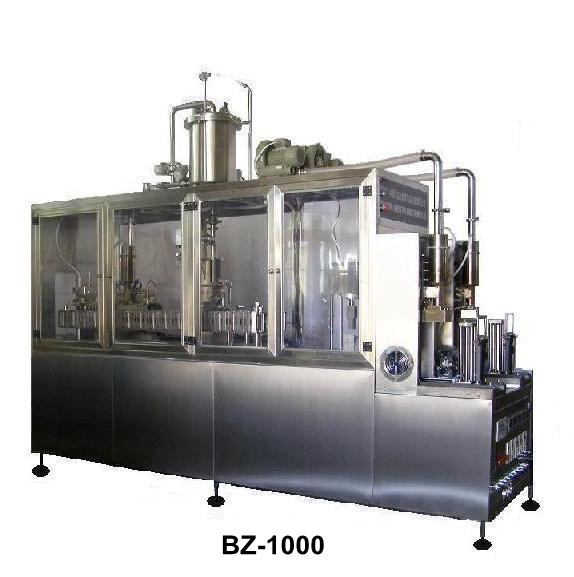

Product Display

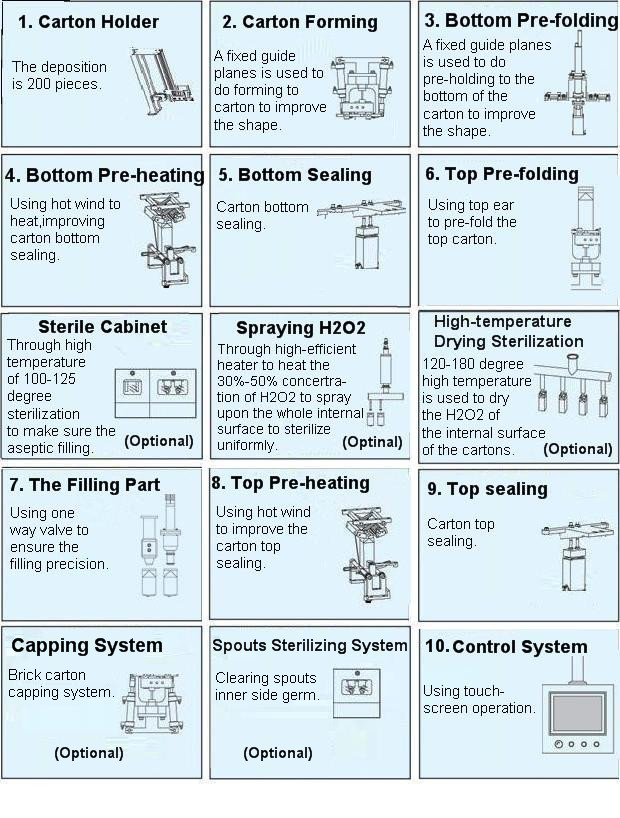

Production Process Drawings

Put brisk cardboard into carton holder (manually) → Bottom preforming → Bottom heating and sealing → Filling → Top preforming → Top sealing molding → ear heating → ear sealing→ Finished Product



Equipment Type and Packaging Material Specification

        Type

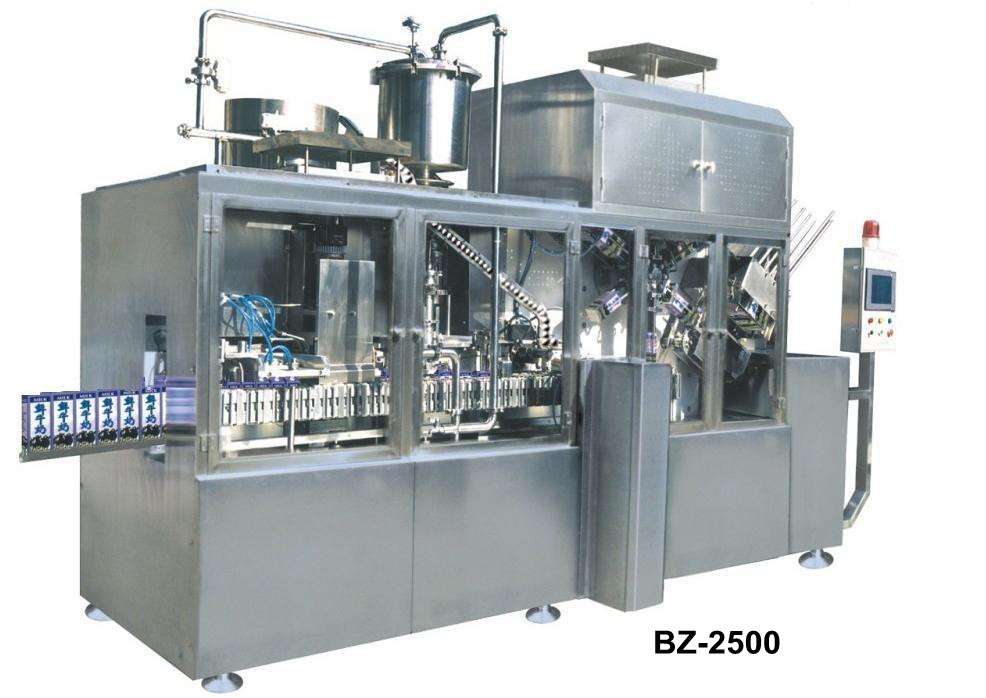

BZ-8000
BZ-6000
BZ-4000
BZ-2500
Specification

Base: 500ml, 750ml

Base: 750ml, 1000ml

Base: 1000ml, 1500ml, 2000ml

﹡Different bottom size can not be used in one machine.

Capacity
8000pcs/h
6000pcs/h
4000pcs/h
2500pcs/h
Weight
4800KGS
3200KGS
5000KGS
3200KGS
Power
80KW
65KW
40KW
23KW

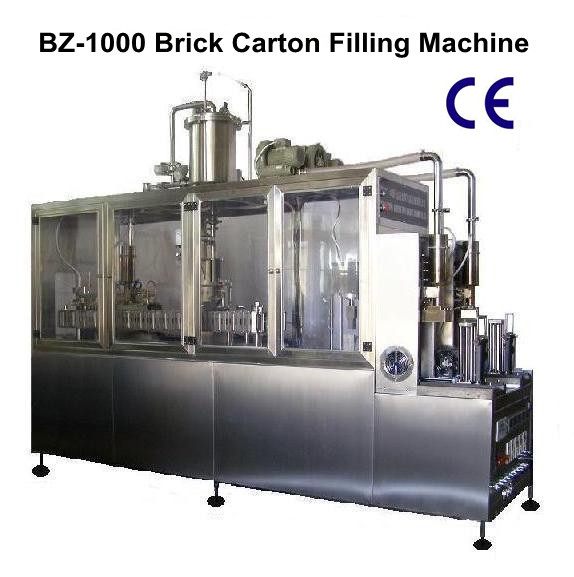

Type
        BZ-1000
          BZ-500
Specification

Base: 200ml,250ml,380ml

Base: 380ml,500ml,

Base: 500ml,750ml

Base: 750ml,1000ml

Base: 1000ml,1500ml,2000ml

﹡Different bottom size can not be used in one machine.

Base: 500ml,750ml

Base: 750ml,1000ml

Base: 1000ml,1500ml,2000ml

﹡Different bottom size can not be used in one machine.

Capacity
1000pcs/h
500pcs/h
Weight
1500KGS
1000KGS
Power
29KW
23KW

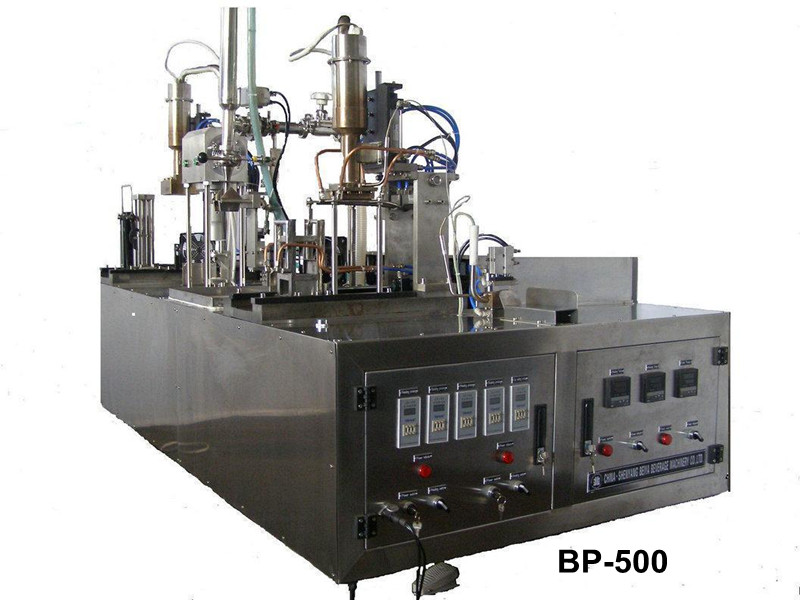

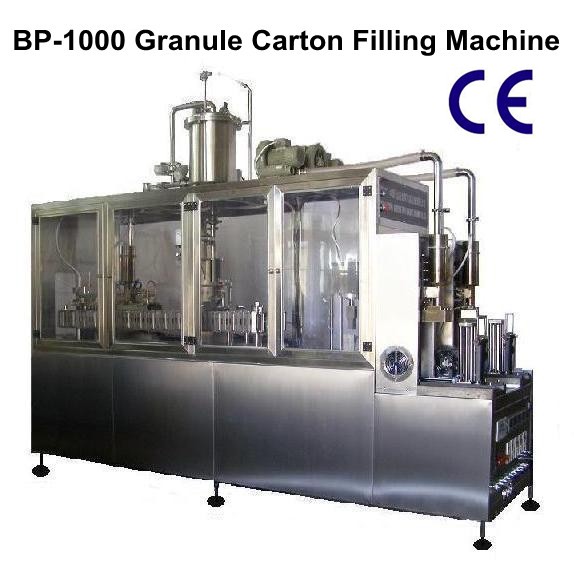

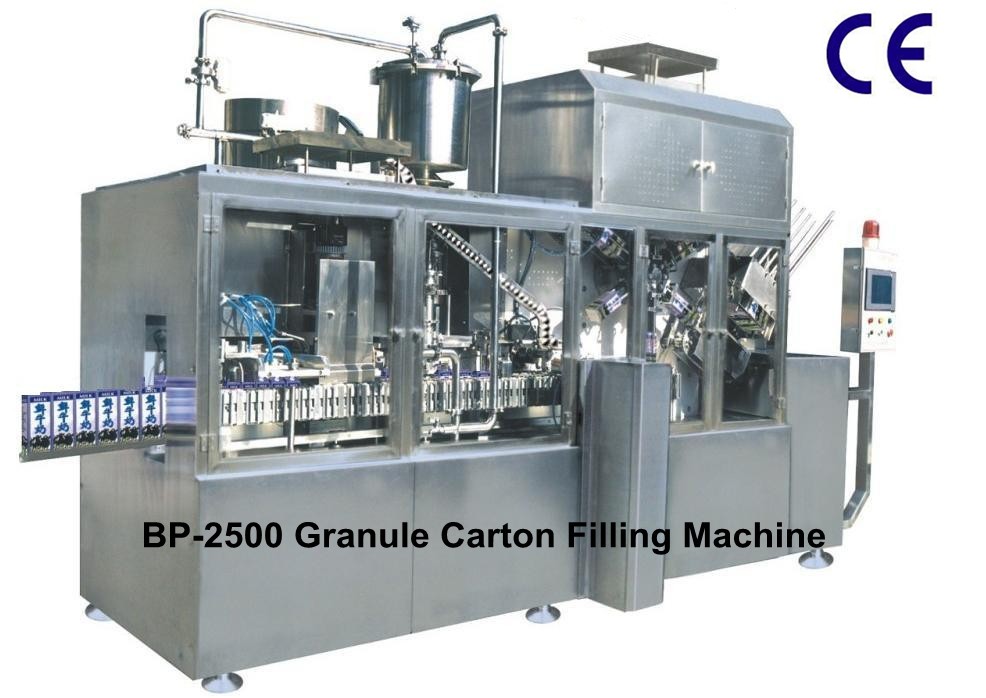

Granule Filling Machine

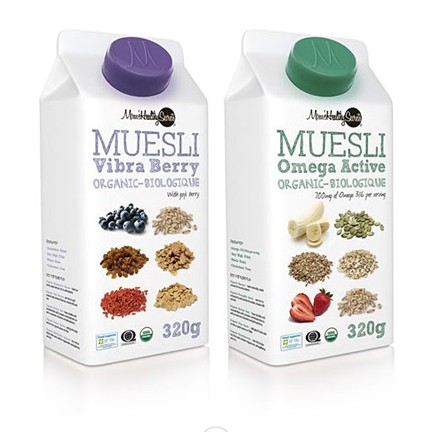

Product Display

Suitable for filling seasoning,  cleaning solution, chemical product, granular, dry powder and so on.

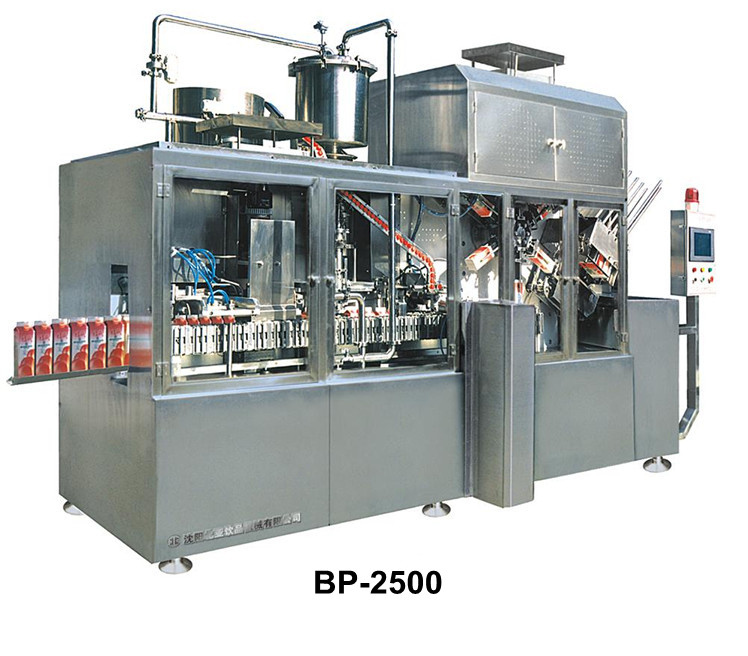

Product Display






Production Process Drawings

Put cardboard into carton holder (manually) → Bottom pre-forming → Bottom heating and sealing → Ultrasonic capping (Optional) → Top pre-forming→ Filling → Top heating and sealing → Date printing → Finished product


Equipment Type and Packaging Material Specification

Type
BP-6000
BP-4000
BP-2500

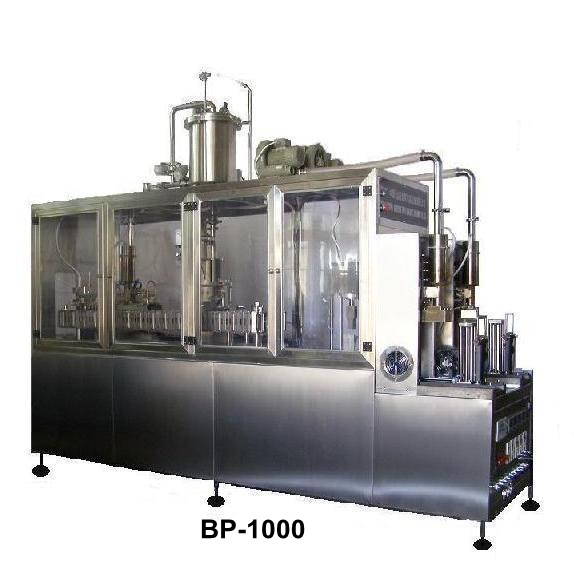

BP-1000
Specification

Base: 500ml, 750ml, 1000ml

Base: 1000ml, 1500ml

Base: 1500ml, 2000ml

﹡Different bottom size can not be used in one machine.

Capacity
6000pcs/h
4000pcs/h
2500pcs/h
1000pcs/h
Weight
6000KGS
5500KGS
5000KGS
3200KGS
Power
60KW
35KW
18KW
23KW
